Product Summary

General Description
The AO3423 uses advanced trench technology to
provide excellent RDS(ON)
, low gate charge and
operation with gate voltages as low as 2.5V. This
device is suitable for use as a load switch or in PWM
applications. It is ESD protected. Standard Product
AO3423 is Pb-free (meets ROHS & Sony 259
specifications). AO3423L is a Green Product
ordering option. AO3423 and AO3423L are
electrically identical.

Features

Features
VDS (V) = -20V
ID = -2 A             (VGS = -10V)
RDS(ON)
<  92mΩ (VGS = -10V)
RDS(ON)
< 118mΩ (VGS = -4.5V)
RDS(ON)
< 166mΩ (VGS = -2.5V)
ESD Rating: 2000V HBM

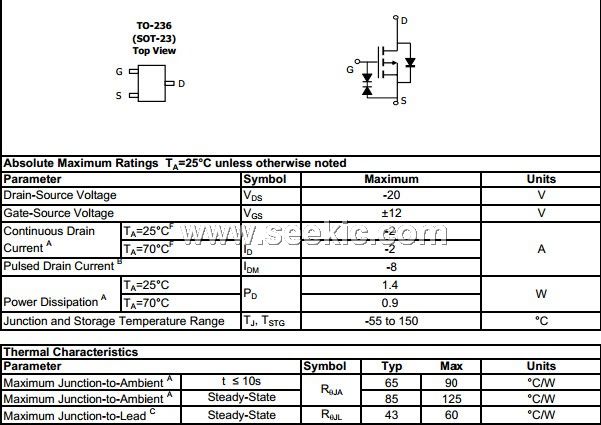

Diagrams
