Product Summary

General Description
The AO4410 uses advanced trench technology to
provide excellent RDS(ON)
, shoot-through immunity,
body diode characteristics and  ultra-low gate
resistance. This device is ideally suited for use as a
low side switch in Notebook CPU core power
conversion. Standard product AO4410 is Pb-free
(meets ROHS & Sony 259 specifications). AO4410L
is a Green Product ordering option. AO4410 and
AO4410L are electrically identical.

Features

Features
VDS (V) = 30V
ID = 18A             (VGS = 10V)
RDS(ON)
< 5.5mΩ (VGS = 10V)
RDS(ON)
< 6.2mΩ (VGS = 4.5V)

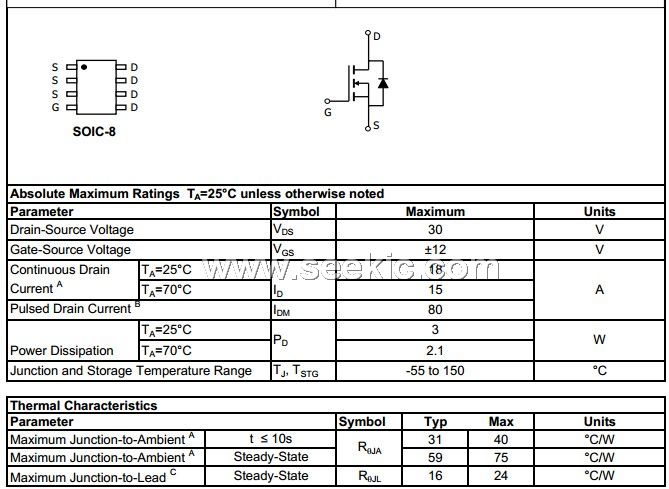

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AO4410
AO4410

Other


Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AO4401
AO4401

Other


Data Sheet

Negotiable
AO4402
AO4402


MOSFET N-CH 20V 20A 8SOIC

Data Sheet

0-3000: $0.23
AO4403
AO4403


MOSFET P-CH -30V -6.1A 8-SOIC

Data Sheet

0-1: $0.39
1-25: $0.27
25-100: $0.23
100-250: $0.20
250-500: $0.17
500-1000: $0.13
AO4404
AO4404

Other


Data Sheet

Negotiable
AO4404B
AO4404B


MOSFET N-CH 30V 8.5A 8-SOIC

Data Sheet

0-1: $0.32
1-25: $0.23
25-100: $0.20
100-250: $0.17
250-500: $0.15
500-1000: $0.11
AO4405
AO4405

Other


Data Sheet

Negotiable
