Product Summary
General Description
The AO8814 uses advanced trench technology to
provide excellent RDS(ON)
, low gate charge and
operation with gate voltages as low as 1.8V while
retaining a 12V VGS(MAX)
rating. It is ESD protected.
This device is suitable for use as a uni-directional or
bi-directional load switch, facilitated by its commondrain configuration. Standard Product AO8814is Pbfree (meets ROHS & Sony 259 specifications).
AO8814L is a Green Product ordering option.
AO8814 and AO8814L are electrically identical.
Features
Features
VDS (V) = 20V
ID = 7.5 A (VGS = 10V)
RDS(ON)
< 16mΩ (VGS = 10V)
RDS(ON)
< 18mΩ (VGS = 4.5V)
RDS(ON)
< 24mΩ (VGS = 2.5V)
RDS(ON)
< 34mΩ (VGS = 1.8V)
ESD Rating: 2500V HBM

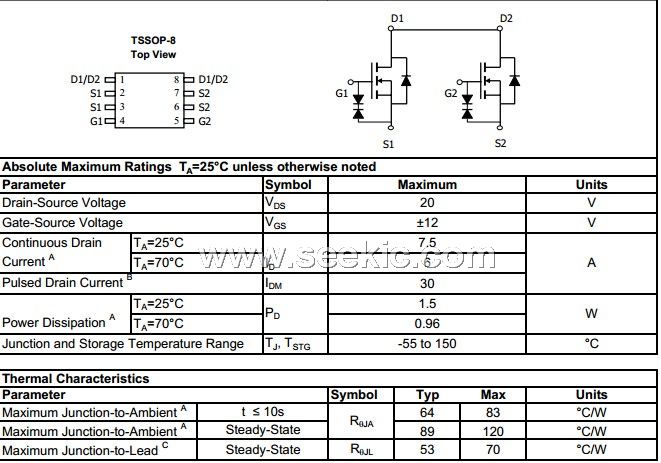

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AO8814 |
|
MOSFET 2N-CH 20V 7.5A 8TSSOP |
Data Sheet |
|
|
||||||
