Product Summary
General Description
The AO4619 uses advanced trench
technology MOSFETs to provide excellent
RDS(ON)
and low gate charge. The
complementary MOSFETs may be used in
inverter and other applications. Standard
Product AO4619 is Pb-free (meets ROHS
& Sony 259 specifications).
Features
Features
n-channel p-channel
VDS (V) = 30V -30V
ID = 7.4A (VGS=10V) -5.2A (VGS = -10V)
RDS(ON) RDS(ON)
< 24mΩ (VGS=10V) < 48mΩ (VGS = -10V)
< 36mΩ (VGS=4.5V) < 74mΩ (VGS = -4.5V)

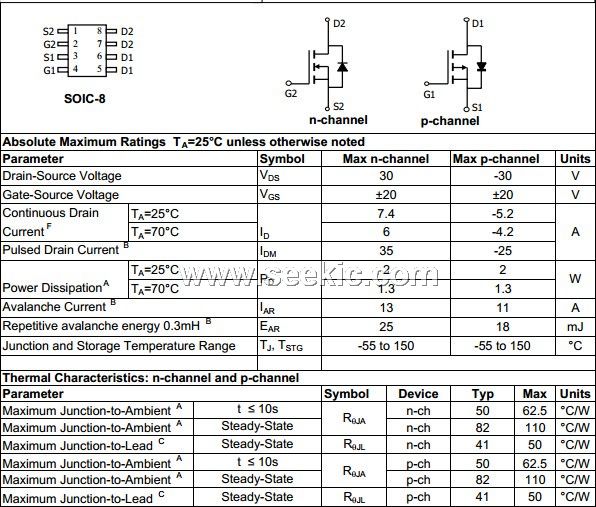

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AO4619 |
|
MOSFET N/P-CH COMPL 30V 8-SOIC |
Data Sheet |
Negotiable |
|
||||
