Product Summary

General Description
The AOD409 uses advanced trench technology to
provide excellent RDS(ON)
, low gate charge and low
gate resistance. With the excellent thermal resistance
of the DPAK package, this device is well suited for
high current load applications. Standard Product
AOD409 is Pb-free (meets ROHS & Sony 259
specifications). AOD409L is a Green Product
ordering option. AOD409 and AOD409L are
electrically identical.

Features

Features
VDS (V) = -60V
ID = -26A (VGS = -10V)
RDS(ON)
< 40mΩ (VGS = -10V) @ -20A
RDS(ON)
 < 55mΩ (VGS = -4.5V)

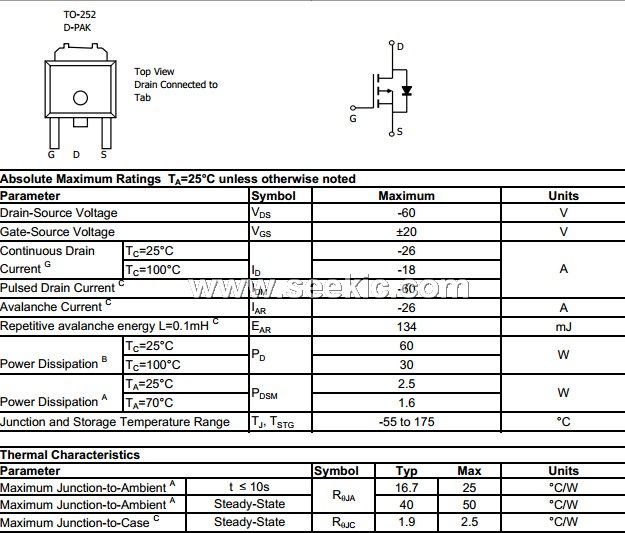

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AOD409
AOD409

MOSFET P-CH -60V -26A TO-252
Data Sheet
0-1: $0.58
1-25: $0.45
25-100: $0.40
100-250: $0.34
250-500: $0.29
500-1000: $0.23
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AOD400
AOD400
Other

Data Sheet
Negotiable
AOD402
AOD402
Other

Data Sheet
Negotiable
AOD403
AOD403

MOSFET P-CH -30V -85A TO-252
Data Sheet
0-1: $0.68
1-25: $0.54
25-100: $0.49
100-250: $0.42
250-500: $0.38
500-1000: $0.30
AOD404
AOD404
Other

Data Sheet
Negotiable
AOD405
AOD405
Other

Data Sheet
Negotiable
AOD405L
AOD405L
Other

Data Sheet
Negotiable
