Product Summary
General Description
The AO8810 uses advanced trench technology to provide
excellent RDS(ON)
, low gate charge and operation with gate
voltages as low as 1.8V. This device is suitable for use as a
load switch or in PWM applications. It is ESD protected.
AO8810L is offered in a lead-free package. Standard
Product AO8810 is Pb-free (meets ROHS & Sony 259
specifications). AO8810L is a Green Product ordering
option. AO8810 and AO8810L are electrically identical.
Features
Features
VDS (V) = 20V
ID = 7 A (VGS = 4.5V)
RDS(ON)
< 20mΩ (VGS = 4.5V)
RDS(ON)
< 24mΩ (VGS = 2.5V)
RDS(ON)
< 32mΩ (VGS = 1.8V)
ESD Rating: 2000V HBM

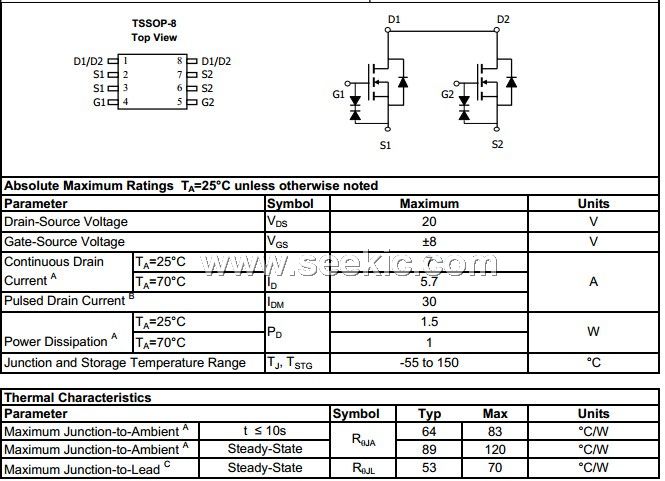

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AO8810 |
|
MOSFET DUAL N-CH 20V 7A 8-TSSOP |
Data Sheet |
Negotiable |
|
||||||||||||||||
