Product Summary
Suitable for reducing set’s size as a result from enabling high-density
mounting due to 2-pin small packages.
Low capacitance ratio: CT = 0.25 pF (typ.)
Low series resistance: rs = 3 Ω (typ.)
Maximum Ratings (Ta 25°C)
Characteristics Symbol Rating Unit
Reverse voltage VR 50 V
Forward current IF 50 mA
Junction temperature Tj 125 °C
Storage temperature range Tstg 55~125 °C
Parametrics
Electrical Characteristics (Ta 25°C)
Characteristics Symbol Test Condition Min Typ. Max Unit
Reverse voltage VR IR 10 A 50 V
Reverse current IR VR 50 V 0.1 A
Forward voltage VF IF 50 mA 0.95 1.0 V
Capacitance CT VR 50 V, f 1 MHz 0.25 0.4 pF
Series resistance rs IF 10 mA, f 100 MHz 3.0
Note: Signal level when capacitance is measured: Vsig 20 mVrms

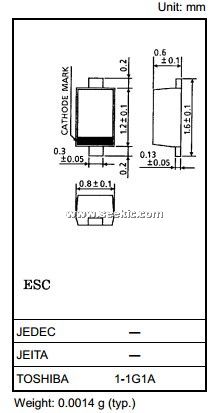

Diagrams
