Product Summary
General Description
The AO4407 uses advanced trench technology to
provide excellent RDS(ON)
, and ultra-low low gate
charge with a 25V gate rating. This device is suitable
for use as a load switch or in PWM applications.
Standard Product AO4407 is Pb-free (meets ROHS
& Sony 259 specifications). AO4407L is a Green
Product ordering option. AO4407 and AO4407L are
electrically identical.
Features
Features
VDS (V) = -30V
ID = -12 A (VGS = -20V)
RDS(ON)
< 13mΩ (VGS = -20V)
RDS(ON)
< 14mΩ (VGS = -10V)

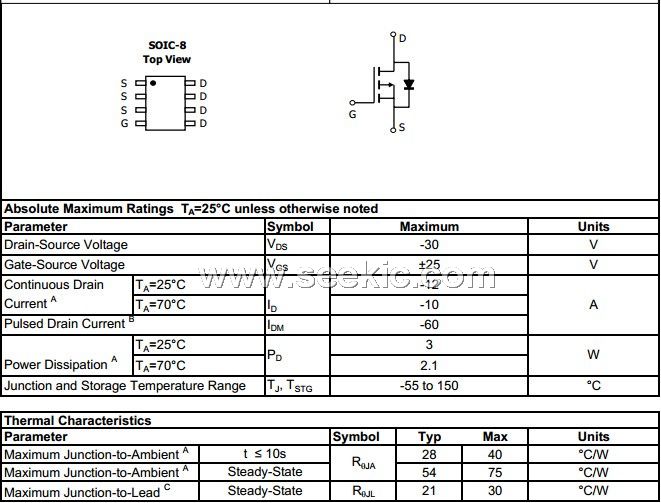

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AO4407A |
|
MOSFET P-CH -30V -12A 8-SOIC |
Data Sheet |
|
|
||||||||||||||||
 |
AO4407 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
