Product Summary
General Description
The AO8820 uses advanced trench technology to
provide excellent RDS(ON)
, low gate charge and
operation with gate voltages as low as 1.8V while
retaining a 12V VGS(MAX)
rating. It is ESD protected. This
device is suitable for use as a uni-directional or bidirectional load switch, facilitated by its common-drain
configuration. Standard Product AO8820 is Pb-free
(meets ROHS & Sony 259 specifications). AO8820L is
a Green Product ordering option. AO8820 and
AO8820L are electrically identical.
Features
Features
VDS (V) = 20V
ID = 7A (VGS = 10V)
RDS(ON)
< 21mΩ (VGS = 10V)
RDS(ON)
< 24mΩ (VGS = 4.5V)
RDS(ON)
< 32mΩ (VGS = 2.5V)
RDS(ON)
<50mΩ (VGS = 1.8V)
ESD Rating: 2000V HBM

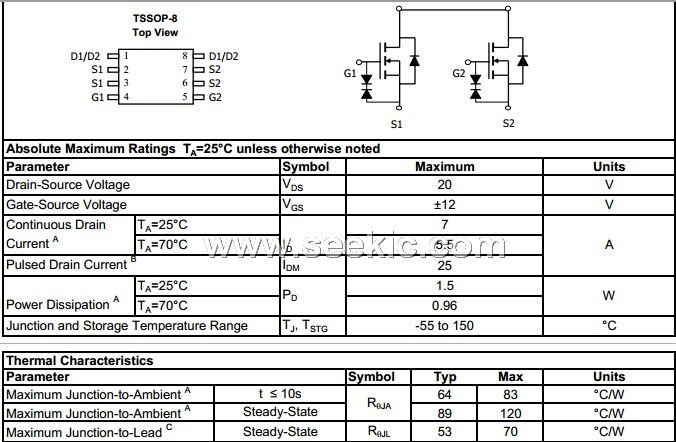

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AO8820 |
|
MOSFET DUAL N-CH 20V 7A 8-TSSOP |
Data Sheet |
Negotiable |
|
||||||
