Product Summary

Off-Line SMPS Current Mode Controller with
integrated 650V CoolMOS

and Startup cell

(frequency jitter Mode) in DIP-7

Product Highlights
? Active Burst Mode to reach the lowest Standby Power
Requirements < 50mW
? Auto Restart protection for overload, overtemperature, overvoltage
? External auto-restart enable function
? Built-in soft start and blanking window
? Extendable blanking Window for high load jumps
? Built-in frequency jitter and soft driving for low EMI
? Green Mould Compound
? Pb-free lead plating; RoHS compliant

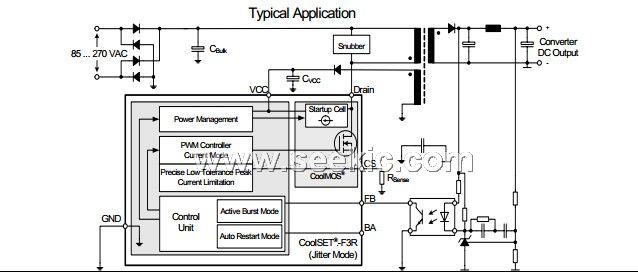

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ICE3BR1765J
ICE3BR1765J

Infineon Technologies

Current Mode PWM Controllers Off-Line SMPS Crrnt Mode 650V

Data Sheet

0-1390: $0.61
1390-2000: $0.57
2000-8000: $0.55
8000-12000: $0.53
ICE3BR1765JZ
ICE3BR1765JZ

Infineon Technologies

Current Mode PWM Controllers COOLSET

Data Sheet

0-1390: $0.48
1390-2000: $0.45
2000-8000: $0.43
8000-12000: $0.41
